Name: R900598455 ZDB6VP1-4X/315V ZDB6VP1-42/315V Pressure Relief Valve Pilot Controlled
Brand: Saar HK Electronic Limited
SKU: R900598455 ZDB6VP1-4X/315V ZDB6VP1-42/315V
Price: Negotiable USD
Availability: InStock

Home Products Rexroth Hydraulic Valves

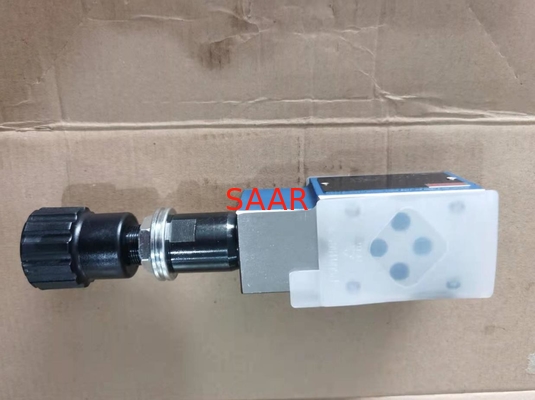

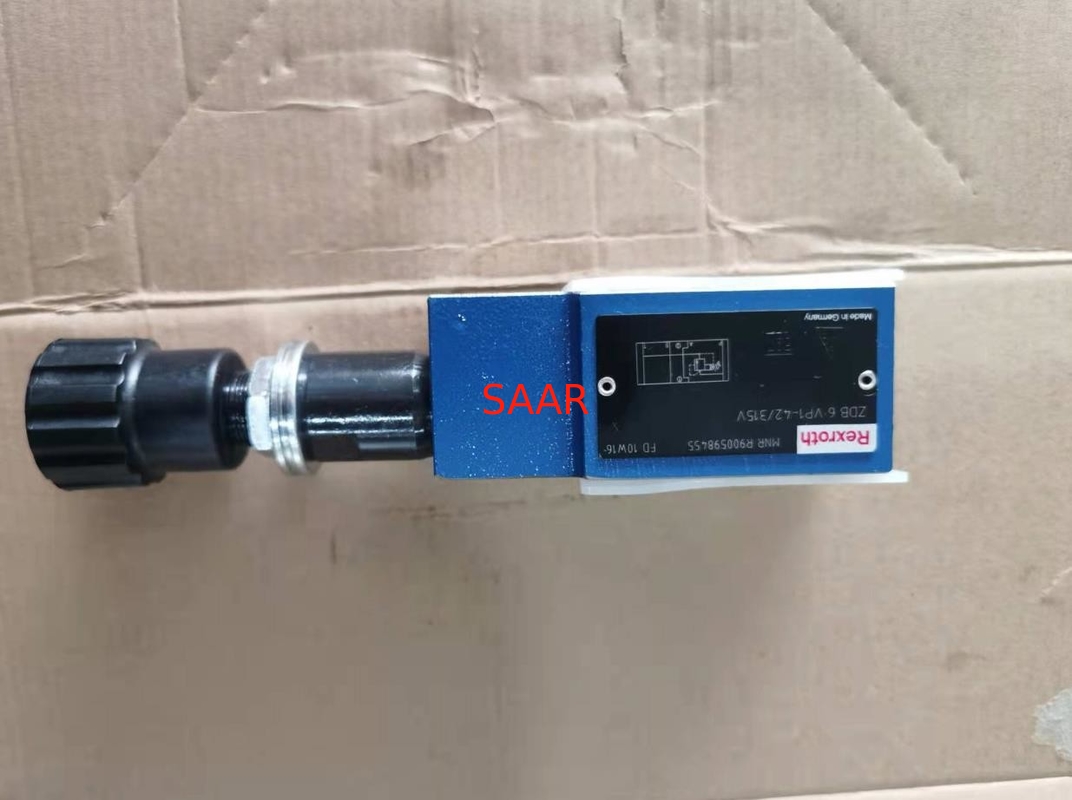

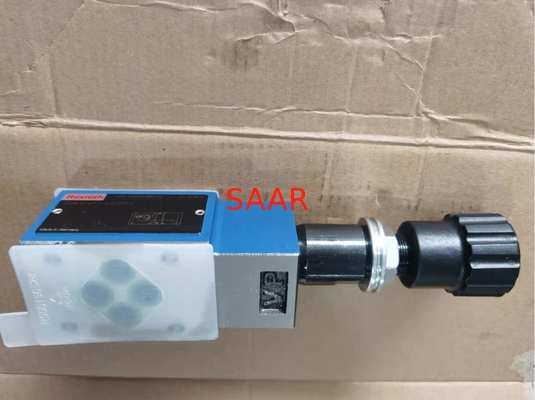

R900598455 ZDB6VP1-4X/315V ZDB6VP1-42/315V Pressure Relief Valve Pilot Controlled

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900598455 ZDB6VP1-4X/315V ZDB6VP1-42/315V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R900598455

Model No.:

ZDB6VP1-4X/315V ZDB6VP1-42/315V

Highlight:

Rexroth Hydraulic Pressure Relief Valve

Rexroth Pressure Sequence Valve

Electro Hydraulic Rexroth Valves

Pressure Relief Valve, pilot controlled ZDB6, Z2DB6

Size 6

Component series 4X

Maximum operating pressure 315 bar

Maximum flow 60 l/min

Features

Sandwich plate valve

Porting pattern according to ISO 4401-03-02-0-05 (with or without loSAARing hole)

4 pressure ratings

5 circuit options

With 1 or 2 pressure valve cartridges

4 adjustment types for pressure adjustment, optionally

• Rotary knob

• Sleeve with hexagon and protective cap

• Lockable rotary knob with scale

• Rotary knob with scale

Corrosion-protected design

01	02	03	04	05	06		07		08	09	10	11	12
Z		DB	6			–	4X	/					*

01	Sandwich plate	Z
02	1 pressure valve cartridge (only with version “VA”, “VB” and “VP”)	no code
02	2 pressure valve cartridges (only with version “VC” and “VD”)	2
03	Pressure relief valve	DB
04	Size 6	6
Relief function from – to:
05	A – T	VA
	P – T	VP
	B – T	VB
	A – T and B – T	VC
	A – B and B – A	VD
Adjustment type for pressure adjustment
06	Rotary knob	1
	Sleeve with hexagon and protective cap	2
	Lockable rotary knob with scale	3¹⁾
	Rotary knob with scale	7
07	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Pressure rating
08	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
Corrosion resistance
09	None	no code
	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3²⁾
	High corrosion protection (720 h salt spray test according to EN ISO 9227)	J5²⁾
Seal material
10	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
11	Without loSAARing hole	no code
11	With loSAARing hole	/60 ³⁾
12	Further details in the plain text	*
