| Place of Origin: | Germany |
| Brand Name: | Rexroth |

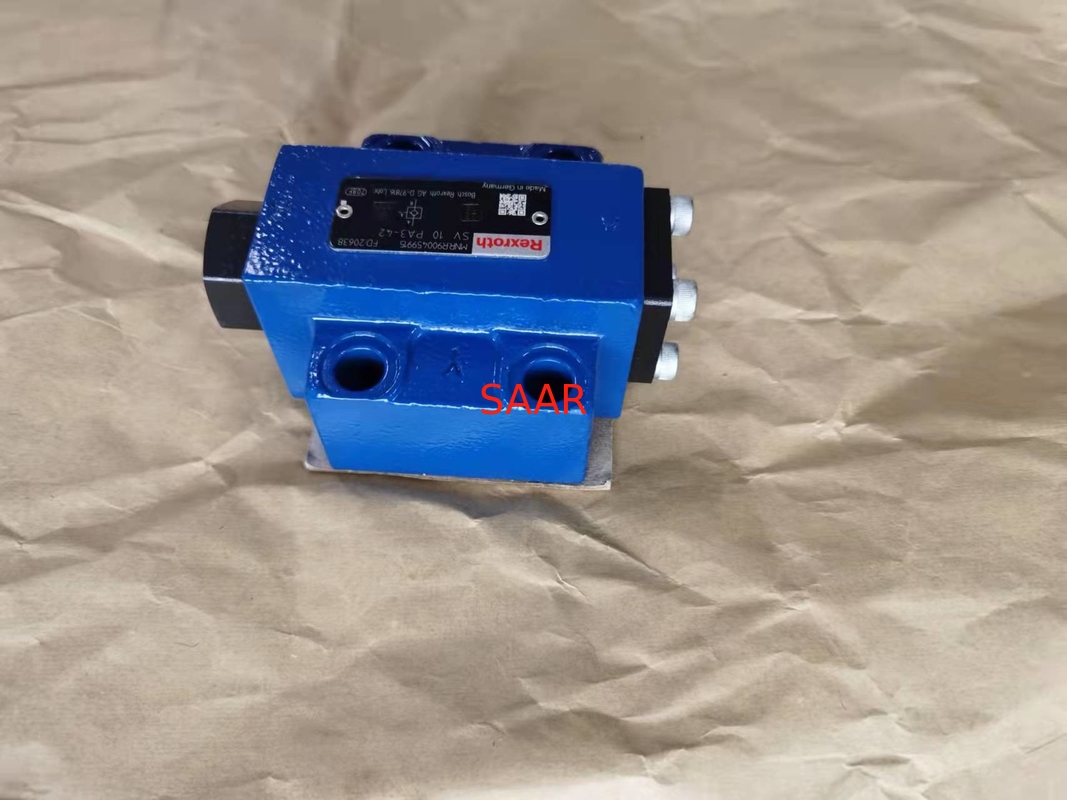

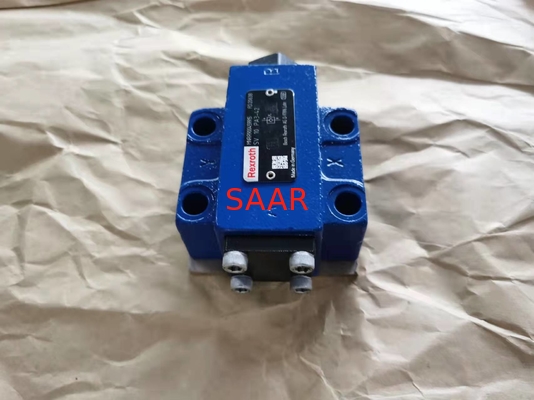

| Model Number: | R900459915 SV10PA3-4X/ R900459915 SV10PA3-42/ |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| Highlight: | R900459915 Hydraulic Check Valves,Subplate Mounting Rexroth Hydraulic Valves,ISO 5781 Hydraulic Check Valves |
||
|---|---|---|---|
Check Valves, Pilot Operated SV 10...32
Features
For subplate mounting
Porting pattern according to ISO 5781-06-07-0-00 (NG10), ISO 5781-08-10-0-00 (NG20), ISO 5781-10-13-0-00 (NG32)
For threaded connection
For the leakage-free blocking of one actuator port
Pilot oil return, internal
Version with pre-opening for dampened release, optional
Various cracking pressures, optional
Check valve installation sets available individually
Corrosion-protected design
Type Code:
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | |||
| S | V | – | 4X | / | – | * |
| 01 | Check valve | S |
| 02 | Pilot oil return, internal | V |
| 03 | Size 10 | 10 |
| Size 20 | 20 | |
| Size 32 | 30 | |
| Type of connection | ||
| 04 | Subplate mounting | P |
| Threaded connection | G | |
| 05 | With pre-opening | A |
| Without pre-opening | B | |
| Cracking pressure | ||
| 06 | See characteristic curves (A → B) | 1 |
| 2 | ||
| 3 | ||
| 4 | ||
| 07 | Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) | 4X |
| Spool position monitoring | ||
| 08 | Without position switch | no code |
|
With position switch 1) |
QMG24 | |
| For more information see "Electrical connection" | ||
| Orifice fitting channel Y | ||
| 09 | Channel Y closed (standard) | Y99 |
|
Orifice Ø** in channel Y 2) |
Y** | |
| Seal material | ||
| 10 | NBR seals | N |
| FKM seals | V | |
| Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | ||
| Corrosion resistance | ||
| 11 | None | no code |
| Improved corrosion protection (240 h salt spray test according to EN ISO 9227) | J3 | |
| 12 | Standard | no code |
| Pilot pressure ppilot from channel X | SO168 | |
| Control open spool with shaft sealing (between channel X–Y and Y–A) | SO286 | |
| Connection thread (versions with threaded connection "G" only) | ||
| 13 | Pipe thread "G" according to ISO 228-1 | no code |
| Pipe thread “UNF/UN” according to ANSI/ASME B 1.1 | /12 | |
| 14 | Further details in the plain text | * |
| 1) | Only version "B3" |
| 2) | Order example: ** = dimension in mm x 10 – e.g. orifice Ø1,2 mm in channel Y = "Y12" |
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth Check Valves, Pilot Operated SV Series on Sale, Short lead time, Best price!!!
| R900483368 | SV10GA1-4X/ |
| R900481097 | SV10GA1-4X//12 |
| R900465776 | SV10GA1-4X/V |
| R900462117 | SV10GA1-4X/V/12 |
| R900455015 | SV10GA2-4X/ |
| R900222361 | SV10GA2-4X//12 |
| R900481120 | SV10GA2-4X/V |
| R900477368 | SV10GA2-4X/V/12 |
| R900402853 | SV10GA3-4X/ |
| R900514060 | SV10GA3-4X//12 |
| R900032320 | SV10GA3-4X/V |
| R900596177 | SV10GA4-4X/ |
| R978905884 | SV10GA4-4X/12 |
| R900509845 | SV10GA4-4X/V |
| R900453511 | SV10GB1-4X/ |
| R900426646 | SV10GB1-4X//12 |
| R900442169 | SV10GB1-4X/V |
| R978856677 | SV10GB1-4X/V/12 |
| R900464954 | SV10GB2-4X/ |
| R978867297 | SV10GB2-4X/12 |
| R900509453 | SV10GB2-4X/V |
| R900403533 | SV10GB3-4X/ |
| R900566670 | SV10GB3-4X//12 |
| R900455086 | SV10GB4-4X/ |
| R978864037 | SV10GB4-4X/12 |
| R900509610 | SV10GB4-4X/V |
| R900483369 | SV10PA1-4X/ |
| R900463364 | SV10PA1-4X/V |
| R900451042 | SV10PA2-4X/ |
| R900403578 | SV10PA2-4X/V |
| R900459915 | SV10PA3-4X/ |
| R901440742 | SV10PA3-4X/J3 |
| R900466324 | SV10PA3-4X/V |
| R900582637 | SV10PA4-4X/ |
| R901114401 | SV10PA4-4X/V |
| R900467724 | SV10PB1-4X/ |
| R900423202 | SV10PB1-4X/V |
| R900403672 | SV10PB2-4X/ |
| R900582578 | SV10PB2-4X/V |
| R900464707 | SV10PB3-4X/ |
| R901098930 | SV10PB3-4X/V |
| R900505678 | SV10PB4-4X/ |
| R900500295 | SV10PB4-4X/V |
| R900587549 | SV15GA1-4X/ |
| R900503632 | SV15GA1-4X//12 |
| R900500841 | SV15GA1-4X/V |
| R900532575 | SV15GA1-4X/V/12 |
| R900501980 | SV15GA2-4X/ |
| R900501010 | SV15GA2-4X/V |
| R978865277 | SV15GA2-4X/V/12 |
| R900502709 | SV15GA3-4X/ |
| R900035312 | SV15GA3-4X/V |
| R900203833 | SV15GA4-4X/ |
| R901019898 | SV15GA4-4X//12 |
| R978914280 | SV15GA4-4X/12 |
| R900224092 | SV15GA4-4X/V |
| R900501333 | SV15GB1-4X/ |
| R900074608 | SV15GB1-4X//12 |
| R901007605 | SV15GB1-4X/V |
| R900599814 | SV15GB2-4X/ |
| R900509516 | SV15GB2-4X/V |
| R900520859 | SV15GB3-4X/ |
| R901050475 | SV15GB3-4X/V |
| R900503588 | SV15GB4-4X/ |
| R900220496 | SV15GB4-4X//12 |
| R900080297 | SV15GB4-4X/V |
| R900587550 | SV20GA1-4X/ |
| R900508425 | SV20GA1-4X//12 |
| R900500292 | SV20GA1-4X/V |
| R900518477 | SV20GA1-4X/V/12 |
| R900500216 | SV20GA2-4X/ |
| R900518319 | SV20GA2-4X//12 |
| R900053412 | SV20GA2-4X/V |
| R900599639 | SV20GA3-4X/ |
| R900203988 | SV20GA3-4X//12 |
| R900511197 | SV20GA4-4X/ |
| R900511371 | SV20GA4-4X/V |
| R900598553 | SV20GB1-4X/ |
| R900074693 | SV20GB1-4X//12 |
| R900528413 | SV20GB1-4X/V |
| R978872250 | SV20GB1-4X/V/12 |
| R900599506 | SV20GB2-4X/ |
| R978897606 | SV20GB2-4X/12 |
| R901318587 | SV20GB2-4X/V |
| R900502808 | SV20GB3-4X/ |
| R900059482 | SV20GB3-4X//12 |
| R900500842 | SV20GB4-4X/ |
| R900065256 | SV20GB4-4X/V |
| R900587557 | SV20PA1-4X/ |
| R901430270 | SV20PA1-4X/J3 |
| R900500094 | SV20PA1-4X/V |
| R900599535 | SV20PA2-4X/ |
| R901170055 | SV20PA2-4X/J3 |
| R900566627 | SV20PA2-4X/V |
| R900598342 | SV20PA3-4X/ |
| R900502113 | SV20PA3-4X/V |
| R900532463 | SV20PA4-4X/ |
| R900987025 | SV20PA4-4X/V |
| R900501701 | SV20PB1-4X/ |
| R900021845 | SV20PB1-4X/V |
| R900501802 | SV20PB2-4X/ |
| R900517582 | SV20PB2-4X/V |
| R900501468 | SV20PB3-4X/ |
| R900507740 | SV20PB4-4X/ |
| R901444120 | SV20PB4-4X/V |
| R900587551 | SV25GA1-4X/ |
| R900502332 | SV25GA1-4X//12 |
| R900507929 | SV25GA1-4X/V |
| R900561890 | SV25GA1-4X/V/12 |
| R900500951 | SV25GA2-4X/ |
| R900505995 | SV25GA2-4X/V |
| R900525172 | SV25GA3-4X/ |
| R900514600 | SV25GA4-4X/ |
| R978912051 | SV25GA4-4X/12 |
| R900516761 | SV25GB1-4X/ |
| R978892121 | SV25GB1-4X/12 |
| R900507224 | SV25GB1-4X/V |
| R978002992 | SV25GB1-4X/V/12 |
| R900761841 | SV25GB2-4X//12 |
| R901059543 | SV25GB2-4X/V |
| R900500483 | SV25GB3-4X/ |
| R900587552 | SV30GA1-4X/ |
| R900517536 | SV30GA1-4X//12 |
| R900527645 | SV30GA1-4X/V |
| R900225857 | SV30GA1-4X/V/12 |
| R900501151 | SV30GA2-4X/ |
| R900528711 | SV30GA2-4X//12 |
| R900520649 | SV30GA2-4X/V |
| R978906849 | SV30GA2-4X/V/12 |
| R900500091 | SV30GA3-4X/ |
| R900573238 | SV30GA4-4X/ |
| R978910038 | SV30GA4-4X/V/12 |
| R900599743 | SV30GB1-4X/ |
| R900560697 | SV30GB1-4X//12 |
| R901273399 | SV30GB1-4X/V |
| R900504124 | SV30GB2-4X/ |
| R978899303 | SV30GB2-4X/12 |
| R900224095 | SV30GB2-4X/V |
| R978903236 | SV30GB2-4X/V/12 |
| R900571302 | SV30GB3-4X/ |
| R900515510 | SV30GB4-4X/ |
| R900587558 | SV30PA1-4X/ |
| R900500892 | SV30PA1-4X/V |
| R900599456 | SV30PA2-4X/ |
| R900502112 | SV30PA2-4X/V |
| R900599890 | SV30PA3-4X/ |
| R978917483 | SV30PA3-4X/V |
| R901137253 | SV30PA3-4X/V |
| R900505554 | SV30PA4-4X/ |
| R900525829 | SV30PA4-4X/V |
| R900502240 | SV30PB1-4X/ |
| R901135580 | SV30PB1-4X/V |
| R900599647 | SV30PB2-4X/ |
| R900053091 | SV30PB2-4X/V |
| R900515645 | SV30PB3-4X/ |
| R900572116 | SV30PB3-4X/V |
| R900513203 | SV30PB4-4X/ |
| R900240914 | SV30PB4-4X/V |
