| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | R902217502 R902251645 R902250869 A11VO40DR/10R-NZC12N00 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On Request |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000/Month |
| MNR: | R902217502 R992001233 R902248363 R902251944 | MODEL: | A11VO40DR/10R-NZC12N00 |
|---|---|---|---|
| Highlight: | R902217502 Rexroth Hydraulic Pump,Size 130 Axial Piston Variable Pump,Swashplate Axial Piston Variable Pump |
||

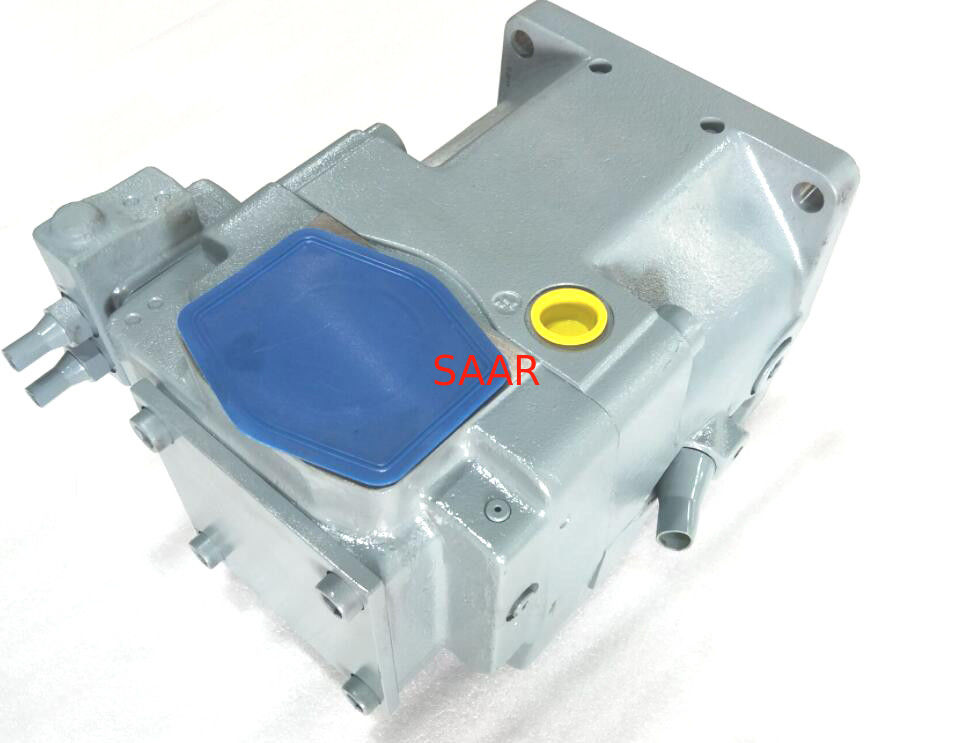

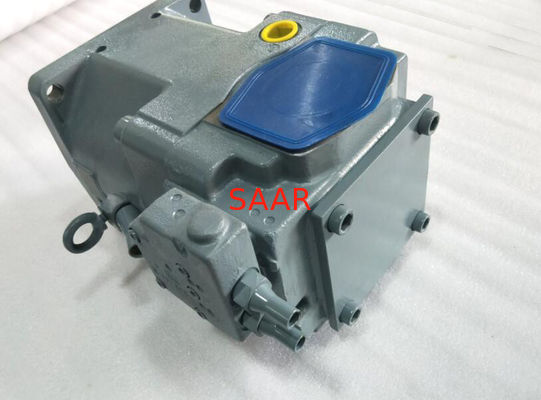

Rexroth A11VO Series Axial Piston Variable Pump
Features
Through drive for mounting of further pumps up to same nominal size
Optional with charge pump for the nominal sizes 130…260
Particularly high speeds are possible with impeller pump version (A11VLO)
Large variety of controls
Swashplate design
Table of values
| Size | 40 | 60 | 75 | 95 | 130 | 145 | 190 | 260 | 130 | 145 | 190 | 260 | |||
| Version | Standard | With charge pump | |||||||||||||
| Displacement geometric, per revolution |
Vg max | cm³ | 42 | 58.5 | 74 | 93.5 | 130 | 145 | 193 | 260 | 130 | 145 | 193 | 260 | |
| Nominal pressure | pnom | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| Maximum pressure | pmax | bar | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Maximum speed | at Vg max | nnom | rpm | 3000 1) | 2700 1) | 2550 1) | 2350 1) | 2100 1) | 2200 1) | 2100 1) | 1800 1) | 2500 2) | 2500 2) | 2500 2) | 2300 2) |
| Flow | at Vg max and nnom | qV nom | l/min | 126 | 158 | 189 | 220 | 273 | 319 | 405 | 468 | 325 | 363 | 483 | 598 |
| Power | at qV nom and pnom | P | kW | 74 | 92 | 110 | 128 | 159 | 186 | 236 | 273 | 190 | 211 | 281 | 349 |
| Torque | at Vg max and pnom | M | Nm | 234 | 326 | 412 | 521 | 724 | 808 | 1075 | 1448 | 724 | 808 | 1075 | 1448 |
| Weight (approx.) | m | kg | 32 | 40 | 45 | 53 | 66 | 76 | 95 | 125 | 72 | 73 | 104 | 138 | |
| R902064654 | AA11VO40DR/10R-NPC62N00 |
| R902081396 | A11VO60DRS/10+A11VO40DR/10 |
| R902083489 | A11VO60DRS/10+A11VO40DR/10 |
| R902276848 | A11VO40DR/10R-NZC12N00R |
| R902217502 | A11VO40DR/10R-NZC12N00 |
| R992001233 | A11VO40DR/10R-NZC12N00 |
| R902248363 | A11VO40DR/10R-NZC12N00 |
| R902251645 | A11VO40DR/10R-NZC12N00 |
| R902250869 | A11VO40DR/10R-NZC12N00 |
| R902251944 | A11VO40DR/10R-NZC12N00 |
| R902239888 | A11VO40DR/10R-NZC12N00 |
| R902245039 | A11VO40DR/10R-NZC12N00 |
| R992001222 | A11VO40DR/10R-NZC12N00 |
| R909613021 | A11VO40DR/10R-NZC12N00 |
| R902245230 | A11VO40DR/10R-NZC12N00 |
| R902250590 | A11VO40DR/10R-NZC12K02 |
| R902241612 | A11VO40DR/10R-NZC12K02 |
| R902247097 | A11VO40DR/10R-NZC12K02 |
| R902250946 | A11VO40DR/10R-NZC12K02 |
| R902253578 | A11VO40DR/10R-NZC12K02 |
| R902248408 | A11VO40DR/10R-NZC12K02 |
| R902083179 | A11VO40DR/10R-NZC12K02 |
| R902247100 | A11VO40DR/10R-NZC12K02 |
| R902220215 | A11VO40DR/10R-NZC12K02 |
| R902119284 | A11VO40DR/10R-NZC12K01-K |
| R902233831 | A11VO40DR/10R-NZC12K01 |
| R902081943 | A11VO40DR/10R-NZC12K01 |
| R902231214 | A11VO40DR/10R-NZC12K01 |
| R902207394 | A11VO40DR/10R-NSC12N00 |
| R902223224 | A11VO40DR/10R-NSC12N00 |
| R902231313 | A11VO40DR/10R-NSC12N00 |
| R902222052 | A11VO40DR/10R-NSC12N00 |
| R902003818 | A11VO40DR/10R-NSC12N00 |
| R902211686 | A11VO40DR/10R-NSC12K02 |
| R902231348 | A11VO40DR/10R-NSC12K02 |
| R902075792 | A11VO40DR/10R-NSC12K02 |
| R902137145 | A11VO40DR/10R-NSC12K01 BR-BEIJ-1 |
| R902211777 | A11VO40DR/10R-NSC12K01 |
| R902233506 | A11VO40DR/10R-NSC12K01 |
| R902228058 | A11VO40DR/10R-NSC12K01 |
| R902203304 | A11VO40DR/10R-NSC12K01 |
| R992001480 | A11VO40DR/10R-NSC12K01 |
| R902033547 | A11VO40DR/10R-NSC12K01 |
| R902207385 | A11VO40DR/10R-NSC12K01 |
| R902203301 | A11VO40DR/10R-NSC12K01 |
| R902228061 | A11VO40DR/10R-NSC12K01 |
| R902170546 | A11VO40DR/10R-NPC12N00V-S |
| R902084995 | A11VO40DR/10R-NPC12N00V-S |
| R902229175 | A11VO40DR/10R-NPC12N00V-S |
| R902215008 | A11VO40DR/10R-NPC12N00V-S |
| R902048698 | A11VO40DR/10R-NPC12N00V |
| R902170213 | A11VO40DR/10R-NPC12N00V |
| R902027851 | A11VO40DR/10R-NPC12N00V |
| R902208662 | A11VO40DR/10R-NPC12N00V |
| R902092046 | A11VO40DR/10R-NPC12N00-E |
| R909602838 | A11VO40DR/10R-NPC12N00 |
| R902220189 | A11VO40DR/10R-NPC12N00 |
| R902170506 | A11VO40DR/10R-NPC12N00 |
| R902222073 | A11VO40DR/10R-NPC12N00 |
| R902092810 | A11VO40DR/10R-NPC12K04-E |
| R902003814 | A11VO40DR/10R-NPC12K04 |
| R902247434 | A11VO40DR/10R-NPC12K02V-S+AZPN |
| R902255999 | A11VO40DR/10R-NPC12K02V-S+AZPG-22-040RDC |
| R902237021 | A11VO40DR/10R-NPC12K02V-S+AZPG-22-040RDC |
| R902253783 | A11VO40DR/10R-NPC12K02V-S+AZPG-22-040RDC |
| R902274958 | A11VO40DR/10R-NPC12K02V-S+AZPG-22-040RDC |
| R902103931 | A11VO40DR/10R-NPC12K02V-S+AZPG-22 |
| R902220262 | A11VO40DR/10R-NPC12K02V-S+AZPG |
| R902208948 | A11VO40DR/10R-NPC12K02V-S+AZP |
| R902220261 | A11VO40DR/10R-NPC12K02V-S |
| R902247386 | A11VO40DR/10R-NPC12K02V-S |
| R902208947 | A11VO40DR/10R-NPC12K02V-S |
| R902255998 | A11VO40DR/10R-NPC12K02V-S |
| R902253782 | A11VO40DR/10R-NPC12K02V-S |
| R902274957 | A11VO40DR/10R-NPC12K02V-S |
| R902237020 | A11VO40DR/10R-NPC12K02V-S |
| R902104176 | A11VO40DR/10R-NPC12K02V-S |
| R902015303 | A11VO40DR/10R-NPC12K02-SK |
| R902085545 | A11VO40DR/10R-NPC12K02-S+AZPG-22 |
| R902233833 | A11VO40DR/10R-NPC12K02-S+AZPG-22 |
| R902233832 | A11VO40DR/10R-NPC12K02-S |
| R902032080 | A11VO40DR/10R-NPC12K02-S |
| R902084976 | A11VO40DR/10R-NPC12K02-S |
| R902066009 | A11VO40DR/10R-NPC12K02-K |
| R902220292 | A11VO40DR/10R-NPC12K02+AZPG |
| R902220283 | A11VO40DR/10R-NPC12K02+AZPG |
| R902220282 | A11VO40DR/10R-NPC12K02 |
| R902220291 | A11VO40DR/10R-NPC12K02 |
| R902015302 | A11VO40DR/10R-NPC12K02 |
| R902233975 | A11VO40DR/10R-NPC12K02 |
| R902220325 | A11VO40DR/10R-NPC12K02 |
| R902044314 | A11VO40DR/10R-NPC12K01-K |
| R902044315 | A11VO40DR/10R-NPC12K01 |
| R902248016 | A11VO40DR/10L-NZC12N00 |
| R902251646 | A11VO40DR/10L-NZC12N00 |
| R902225012 | A11VO40DR/10L-NZC12N00 |
| R902217503 | A11VO40DR/10L-NZC12N00 |
| R992001318 | A11VO40DR/10L-NZC12N00 |
| R902083482 | A11VO40DR/10L-NZC12N00 |
| R902220424 | A11VO40DR/10L-NZC12N00 |
| R902248365 | A11VO40DR/10L-NZC12K01 |
| R992001207 | A11VO40DR/10L-NZC12K01 |
| R902050317 | A11VO40DR/10L-NZC12K01 |
| R902026913 | A11VO40DR/10L-NTC12K04 |
| R902253647 | A11VO40DR/10L-NSC12N00 |
| R902027534 | A11VO40DR/10L-NSC12N00 |
| R902247033 | A11VO40DR/10L-NSC12N00 |
| R902251855 | A11VO40DR/10L-NSC12K02 |
| R902026422 | A11VO40DR/10+A11VO40DR/10 |
| R902003809 | A11VO40DR/10+A11VO40DR/10 |
| R902075705 | A11VO260DR/11+A11VO40DR/10 |
| R902220638 | A11VLO260LRDH2/11L+A11VO40DR/10L |
| R902253579 | A11VLO260LRDH1/11R+A11VO40DR/10R+AZPGFF |
| R902248409 | A11VLO260LRDH1/11R+A11VO40DR/10R+AZPGFF |
| R902247101 | A11VLO260LRDH1/11R+A11VO40DR/10R+AZPGF |
| R902211778 | A11VLO260LRDH1/11R+A11VO40DR/10R |
| R902123677 | A11VLO260LRDH1/11R+A11VO40DR/10R |
| R902228059 | A11VLO260LRDH1/11R+A11VO40DR/10R |
| R902241613 | A11VLO260LRDH1/11+A11VO40DR/10+AZPGF |
| R902123682 | A11VLO190LRDH1/11R+A11VO40DR/10R |
| R902207383 | A11VLO190LRDH1/11R+A11VO40DR/10R |
| R902228062 | A11VLO190LRDH1/11R+A11VO40DR/10R |
| R902203299 | A11VLO190LRDH1/11+A11VO40DR/10 |
| R902203302 | A11VLO145LRDH1/11+A11VO40DR/10 |
| R902551416 | A11VLO145DRA00/40ML+A11VO40DR/10LNSC12N0 |
| R902247035 | A11VLO145DR/11L+A11VO40DR/10L |
