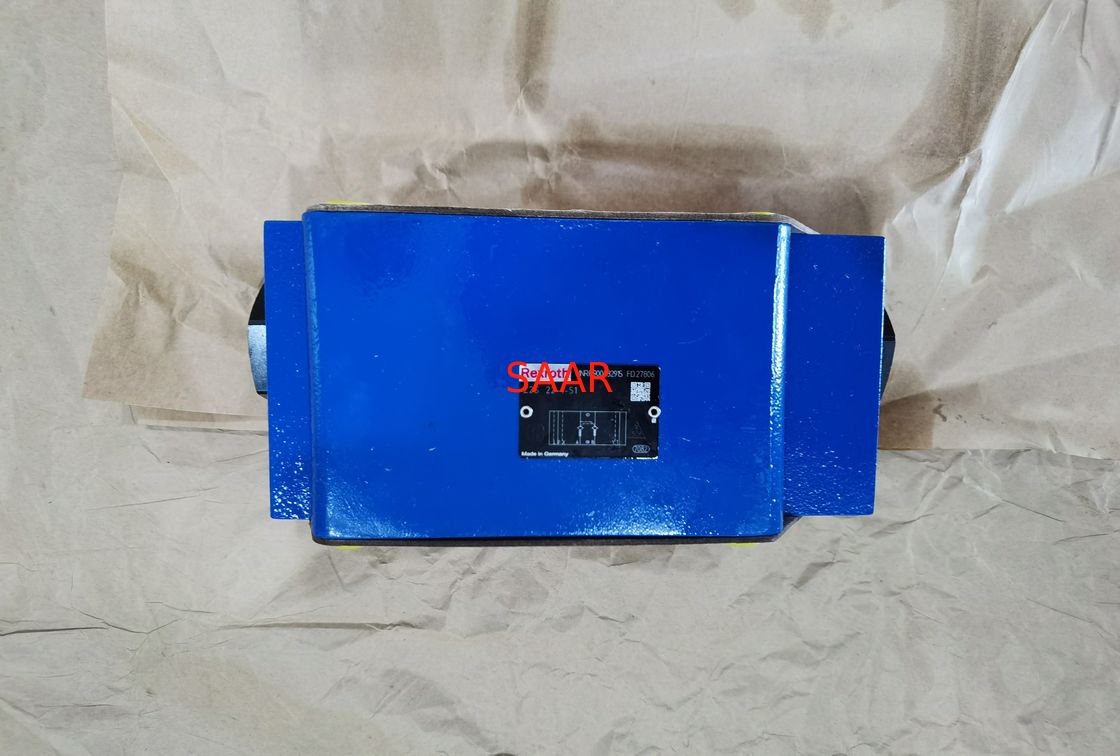

Name: Rexroth R900432915 Z2S22-1-51 Z2S22-1-5X Pilot Operated Check Valve
Brand: Saar HK Electronic Limited
SKU: R900432915 Z2S 22-1-51/ Z2S22-1-5X
Price: Negotiable USD
Availability: InStock

Home Products Rexroth Hydraulic Valves

Rexroth R900432915 Z2S22-1-51 Z2S22-1-5X Pilot Operated Check Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900432915 Z2S 22-1-51/ Z2S22-1-5X

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Model:

R900432915

MNR:

Z2S 22-1-51/ Z2S22-1-5X

Highlight:

R900432915 Rexroth Hydraulic Valves

450l/Min Pilot Operated Check Valve

Z2S22-1-5X Pilot Operated Check Valve

Check valves, pilot operated Z2S22

Size 25
Component series 5X
Maximum operating pressure 315 bar
Maximum flow 450 l/min

Features
Sandwich plate valve for use in vertical stackings
Porting pattern according to ISO 4401-08-08-0-05
For the leakage-free blocking of one or two actuator ports, optional
Various cracking pressures
Pre-opening standard
Check valve installation sets available individually
Special versions on request

Type Code:

01	02	03	04		05		06	07	08	09
Z2S	22			–	5X	/				*

01	Check valve, Sandwich plate design	Z2S
02	Size 25	22
Leakage-free blocking
03	Channel A and B	–
	Channel A	A
	Channel B	B
Cracking pressure
04	3 bar	1
	5 bar	2
	7,5 bar	3
	10 bar	4
05	Component series 50 ... 59 (50 ... 59: unchanged technical data and pin assignment)	5X
06	Surface without corrosion resistance ¹⁾	no code
Seal material
07	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used.
Special version
08	Without	no code
	Control open by external port G1/4 (only version "A" and "B")	SO40
	Control spool unloaded to port T	SO60
09	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valves, pilot operated Z2S22 Model List:

R900433032	Z2S22A1-5X/
R900539017	Z2S22A1-5X/SO21
R900346704	Z2S22A1-5X/V
R900457907	Z2S22A2-5X/
R900589414	Z2S22A2-5X/V
R900507469	Z2S22A3-5X/
R900988977	Z2S22A3-5X/V
R900522102	Z2S22A4-5X/
R900433037	Z2S22B1-5X/
R900533752	Z2S22B1-5X/V
R901017619	Z2S22B1-5X/VSO60
R900072796	Z2S22B1-5X=
R900437818	Z2S22B2-5X/
R900591053	Z2S22B2-5X/V
R900528638	Z2S22B3-5X/
R900509911	Z2S22B4-5X/
R900432915	Z2S22-1-5X/
R900443803	Z2S22-1-5X/SO21
R900436495	Z2S22-1-5X/V
R900072795	Z2S22-1-5X=
R900433031	Z2S22-2-5X/
R900525586	Z2S22-2-5X/V
R900439719	Z2S22-3-5X/
R900476296	Z2S22-3-5X/V
R900435968	Z2S22-4-5X/
R901337072	Z2S22-4-5X/V
R987123806	Z2S22-4-5X/V
R987123806	Z2S22-4-5X/V
R978859136	Z2S22B3-5X/V
R978859137	Z2S22B4-5X/V
