Name: R900572577 DBDS30G10/200B DBDS30G1X/200B Pressure Relief Valve
Brand: Saar HK Electronic Limited
SKU: R900572577 DBDS30G10/200B DBDS30G1X/200B
Price: Negotiable USD
Availability: InStock

Home Products Rexroth Hydraulic Valves

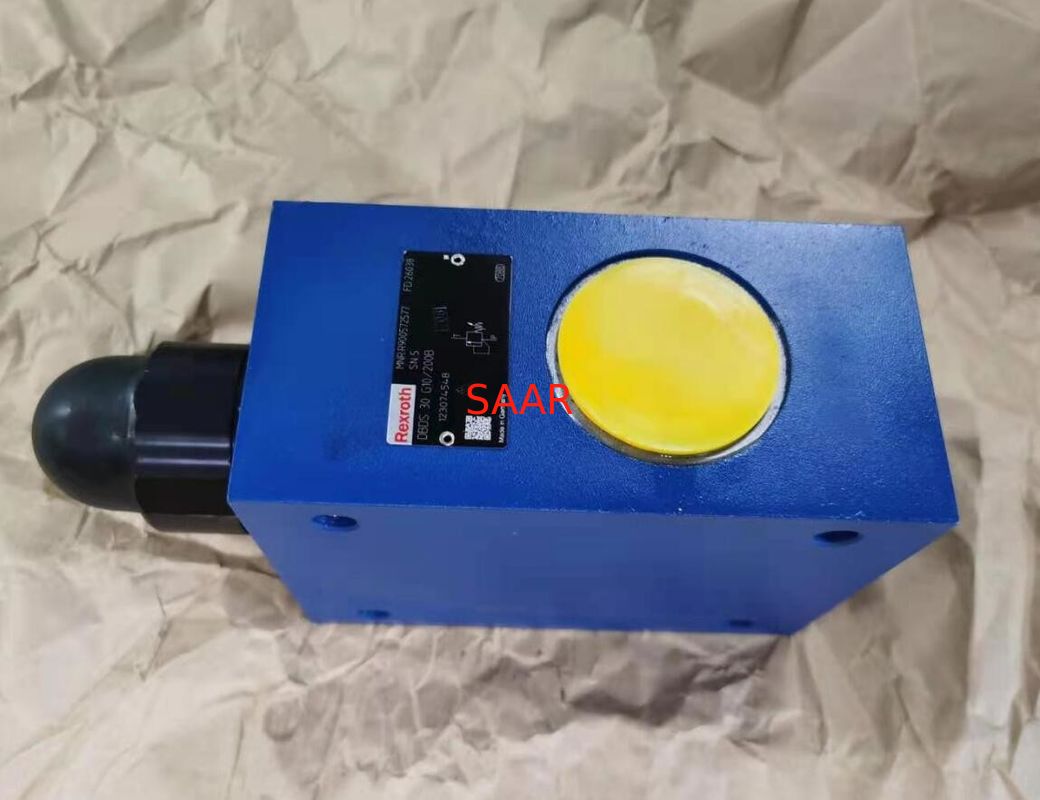

R900572577 DBDS30G10/200B DBDS30G1X/200B Pressure Relief Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900572577 DBDS30G10/200B DBDS30G1X/200B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Material No.:

R900572577

Type No.:

DBDS30G10/200B DBDS30G1X/200B

Highlight:

350l/Min Pressure Relief Valve

SAE Thread Pressure Relief Valve

Rexroth Hydraulic Pressure Relief Valve

Pressure relief valve, direct controlled DBD Series

Size 6 … 30
Component series 1X
Maximum operating pressure 630 bar
Maximum flow 350 l/min

Features

As screw-in cartridge valve (cartridge)
For threaded connection
For subplate mounting
Adjustment type for pressure adjustment, optionally:
‒ Sleeve with hexagon and protective cap
‒ Rotary knob
‒ Hand wheel
‒ Lockable rotary knob
Corrosion-protected design

Type Code:

01	02	03	04	05		06	07	08	09	10	11
DBD				1X	/						*

01	Pressure relief valve, direct controlled								DBD
Adjustment type for pressure adjustment
02		NG6	NG8	NG10	NG15	NG20	NG25	NG30
	Sleeve with hexagon and protective cap	✔	✔	✔	✔	✔	✔	✔	S
	Rotary knob ¹⁾	✔	✔	✔	✔	✔	–	–	H
	Hand wheel ²⁾	–	–	–	–	–	✔	✔	H
	Lockable rotary knob ^{1; ,3; 4)}	✔	✔	✔	✔	✔	–	–	A
03	Size 6 (connection G1/4)								6
	Size 8 (connection G3/8)								8
	Size 10 (connection G1/2)								10
	Size 15 (connection G3/4)								15
	Size 20 (connection G1)								20
	Size 25 (connection G1 1/4)								25
	Size 30 (connection G1 1/2)								30
Type of connection
04		NG6	NG8	NG10	NG15	NG20	NG25	NG30
	As screw-in cartridge valve (cartridge)	✔	–	✔	–	✔	–	✔	K
	For threaded connection	✔	✔	✔	✔	✔	✔	✔	G
	For subplate mounting	✔	–	✔	–	✔	–	✔	P
05	Component series 10 ... 1Z (10 ... 1Z: unchanged installation and connection dimensions)								1X
Pressure rating ⁵⁾
06		NG6	NG8	NG10	NG15	NG20	NG25	NG30
	Set pressure up to 25 bar	✔	✔	✔	✔	✔	✔	✔	25
	Set pressure up to 50 bar	✔	✔	✔	✔	✔	✔	✔	50
	Set pressure up to 100 bar	✔	✔	✔	✔	✔	✔	✔	100
	Set pressure up to 200 bar	✔	✔	✔	✔	✔	✔	✔	200
	Set pressure up to 315 bar	✔	✔	✔	✔	✔	✔	✔	315
	Set pressure up to 400 bar	✔	✔	✔	✔	✔	–	–	400
	Set pressure up to 630 bar ⁶⁾	–	–	✔	–	–	–	–	630
Corrosion resistance (For availability see table below)
07	None								no code
	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)								J3
	High corrosion protection (720 h salt spray test according to EN ISO 9227)								J5
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
08	NBR seals								no code
08	FKM seals								V
Line connection
09	Pipe thread according to ISO 228-1								no code
09	SAE thread								12
Equipment Directive
10	Without type-examination procedure								no code
10	Type-examination tested safety valve according to Pressure Equipment Directive 2014/68/EU								E
11	Further details in the plain text

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Pressure relief valve, direct controlled DBD Series Model No. List:

R900429452	DBDS30G1X/
R900423763	DBDS30G1X/100
R900340398	DBDS30G1X/100SO60
R900536978	DBDS30G1X/100SO74
R900362426	DBDS30G1X/100W1
R900901838	DBDS30G1X/100-085
R900377967	DBDS30G1X/100/12
R900936934	DBDS30G1X/100/12B
R901201815	DBDS30G1X/100/12E
R900585857	DBDS30G1X/100/5
R900479122	DBDS30G1X/100/5
R900577702	DBDS30G1X/100B
R900769562	DBDS30G1X/100E
R901208617	DBDS30G1X/100J3
R901052250	DBDS30G1X/100J3=TA
R900423758	DBDS30G1X/100V
R900391800	DBDS30G1X/100VW100
R900383595	DBDS30G1X/100VW40
R900423745	DBDS30G1X/110B
R901000245	DBDS30G1X/110E
R900944200	DBDS30G1X/120B
R901026020	DBDS30G1X/120E
R900572493	DBDS30G1X/130B
R901341824	DBDS30G1X/130E
R901415921	DBDS30G1X/135E
R900572494	DBDS30G1X/140B
R900773221	DBDS30G1X/140E
R900572495	DBDS30G1X/150B
R901103357	DBDS30G1X/150E
R900572496	DBDS30G1X/160B
R901076141	DBDS30G1X/160E
R900422789	DBDS30G1X/170B
R900776266	DBDS30G1X/170E
R900909627	DBDS30G1X/175B
R900572576	DBDS30G1X/180B
R901022244	DBDS30G1X/180E
R901183890	DBDS30G1X/190E
R900424281	DBDS30G1X/200
R900361306	DBDS30G1X/200SO450
R901046366	DBDS30G1X/200-150
R900746472	DBDS30G1X/200-170
R900352113	DBDS30G1X/200/12
R900453288	DBDS30G1X/200/5
R900584214	DBDS30G1X/200/5
R900572577	DBDS30G1X/200B
R900773642	DBDS30G1X/200E
R900402175	DBDS30G1X/200J
R900424260	DBDS30G1X/200V
R900786916	DBDS30G1X/200V/12
R900348709	DBDS30G1X/200V/5
R901093765	DBDS30G1X/200VE
R900371719	DBDS30G1X/210/5B
R900429823	DBDS30G1X/210B
R900775076	DBDS30G1X/210E
R900437329	DBDS30G1X/210VB
R901405349	DBDS30G1X/210VE
R900572737	DBDS30G1X/220B
R901000552	DBDS30G1X/220E
R900765496	DBDS30G1X/220VB
R901104962	DBDS30G1X/230E
R900572704	DBDS30G1X/240B
R901129279	DBDS30G1X/245E
R900427243	DBDS30G1X/25
R900396264	DBDS30G1X/25SO150
R900590023	DBDS30G1X/25SO52
R900454493	DBDS30G1X/25W1
R900926559	DBDS30G1X/25-10
R900943719	DBDS30G1X/25-15
R900387959	DBDS30G1X/25/12
R900337883	DBDS30G1X/25/2
R900479060	DBDS30G1X/25/5
R900478857	DBDS30G1X/25/V/5
R900918113	DBDS30G1X/250B
R901135138	DBDS30G1X/250E
R900592247	DBDS30G1X/25J3
R900401413	DBDS30G1X/25V
R900359387	DBDS30G1X/25VW1
R900533774	DBDS30G1X/25V/12
R900942062	DBDS30G1X/260B
R901230540	DBDS30G1X/260E
R900572705	DBDS30G1X/270B
R901001331	DBDS30G1X/270E
R900944260	DBDS30G1X/275B
R900572706	DBDS30G1X/280B
R901444995	DBDS30G1X/280E
R901138494	DBDS30G1X/285E
R901364722	DBDS30G1X/290E
R900911179	DBDS30G1X/300B
R900774095	DBDS30G1X/300E
R900572309	DBDS30G1X/30B
R901018315	DBDS30G1X/30E
R900424261	DBDS30G1X/315
R900434368	DBDS30G1X/315SO117
R900368318	DBDS30G1X/315W1
R901231811	DBDS30G1X/315-210
R901156099	DBDS30G1X/315-230
R901363999	DBDS30G1X/315-260
R900934161	DBDS30G1X/315-270
R901441468	DBDS30G1X/315-300
R900464654	DBDS30G1X/315/12
R900476749	DBDS30G1X/315/5
R900333565	DBDS30G1X/315/V/5
R900429251	DBDS30G1X/315B
R900769573	DBDS30G1X/315E
R900339922	DBDS30G1X/315J3
R900567559	DBDS30G1X/315MK
R901230151	DBDS30G1X/315P210
R900436516	DBDS30G1X/315V
R900465398	DBDS30G1X/315VW1
R900465398	DBDS30G1X/315VW1
R900368990	DBDS30G1X/315V/12
R900479543	DBDS30G1X/315VB
R901456155	DBDS30G1X/315VE
R900444461	DBDS30G1X/400
R900438806	DBDS30G1X/400B
R900393798	DBDS30G1X/400J
R901224916	DBDS30G1X/40E
R900424262	DBDS30G1X/50
R900391323	DBDS30G1X/50W1
R901031165	DBDS30G1X/50-40
R900755434	DBDS30G1X/50/12
R900429635	DBDS30G1X/50/2
R900474158	DBDS30G1X/50/5
R900474001	DBDS30G1X/50/V/5
R900917765	DBDS30G1X/50B
R901114832	DBDS30G1X/50E
R900423903	DBDS30G1X/50V
R900966564	DBDS30G1X/50VB
R901144310	DBDS30G1X/55E
R900428164	DBDS30G1X/60B
R901177253	DBDS30G1X/60E
R901038013	DBDS30G1X/70E
R900572390	DBDS30G1X/80B
R901019378	DBDS30G1X/80E
R901487092	DBDS30G1X/90E
R901363836	DBDS30G1X=25
R901234672	DBDS30G1X=260E
R901234673	DBDS30G1X=315-210
R901178924	DBDS30G1X=40E
R901250346	DBDS30G1X=50P40SO291
R978858863	DBDS30G1X/200V/12
R978855046	DBDS30G1X/50V/12
