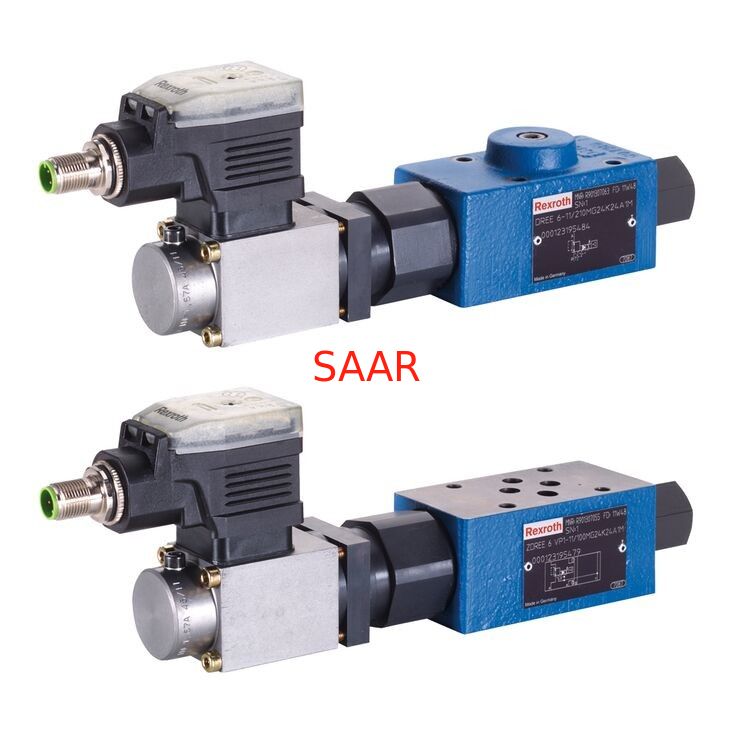

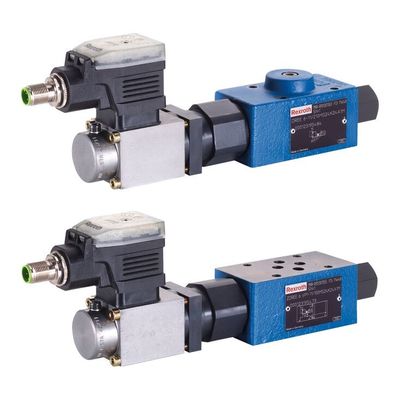

Name: R901307063 DREE6-11/210MG24K24A1M DREE6-1X/210MG24K24A1M Proportional Pressure Reducing Valve
Brand: Saar HK Electronic Limited
SKU: R901307063 DREE6-11/210MG24K24A1M DREE6-1X/210MG24K24A1M
Price: Negotiable USD
Availability: InStock

Home Products Rexroth Hydraulic Valves

R901307063 DREE6-11/210MG24K24A1M DREE6-1X/210MG24K24A1M Proportional Pressure Reducing Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901307063 DREE6-11/210MG24K24A1M DREE6-1X/210MG24K24A1M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901307063

Model No.:

DREE6-11/210MG24K24A1M DREE6-1X/210MG24K24A1M

Highlight:

R901307063 Proportional Pressure Reducing Valve

Proportional Pressure Reducing Valve

Proportional pressure reducing valve, pilot-operated
ZDRE 6, ZDREE 6

Size 6
Component series 1X
Max. operating pressure 315 bar
Flow, max. 30 l/min

Features
Pilot-operated pressure reducing valve in ports A and P1 with pressure limitation
Operation by means of a proportional solenoid
For subplate mounting or sandwich plate design: Porting pattern according to ISO 4401-03-02-05
Minimum set pressure in ports A or P1
Type ZDREE with integrated electronics (OBE)

Type Code

01	02	03	04	05	06		07		08	09	10	11	12	13	14	15
Z	DRE		6			‒	1X	/		M	G24					*

01	Sandwich plate	Z
02	Proportional pressure reducing valve	DRE
03	For external analog electronics	no code
03	With integrated electronics (OBE)	E
04	Size 6	6
Pressure reduction
05	in channel A (subplate mounting)	no code
05	In channel P (sandwich plate valve)	VP
Position of the mating connector (omitted in case of subplate mounting)
06		1
		2
		3
		4
07	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X
Pressure rating
08	50 bar	50
	100 bar	100
		210
	315 bar	315¹⁾
09	Without check valve	M
Power supply
10	Direct voltage 24 V	G24
11	With manual override	N9
11	Without manual override	no code
Electrical connection
12	For type ZDRE:
	Without mating connector; connector DIN EN 175301-803	K4
	For type ZDREE:
	Without mating connector; connector M12	K24
Electrical interface
13	Command value 0 … 10 V	A1
	Command value 4 to 20 mA	F1
	For type ZDRE:	no code
Seal material
14	NBR seals	M
14	FKM seals	V
15	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Proportional pressure reducing valve, pilot-operated DRE6, DREE6 Model List:

R900932943	DRE6-1X/100MG24K4M
R900723160	DRE6-1X/100MG24K4V
R901208854	DRE6-1X/100MG24N9K4M
R901252618	DRE6-1X/100MG24N9K4V
R900548837	DRE6-1X/100MG24NK4M
R900959265	DRE6-1X/100MG24NK4V
R900534499	DRE6-1X/100MG24NZ4M
R900567548	DRE6-1X/100MG24NZ4M-1
R900574310	DRE6-1X/100MG24NZ4V
R900529313	DRE6-1X/100MG24Z4M
R900532493	DRE6-1X/100MG24Z4M-1
R900928873	DRE6-1X/210MG24K4M
R900944999	DRE6-1X/210MG24K4V
R901208855	DRE6-1X/210MG24N9K4M
R900901953	DRE6-1X/210MG24NK4M
R900562481	DRE6-1X/210MG24NZ4M
R900547632	DRE6-1X/210MG24NZ4V
R900524530	DRE6-1X/210MG24Z4M
R900578089	DRE6-1X/210MG24Z4V
R900954429	DRE6-1X/50MG24K4M
R900712624	DRE6-1X/50MG24K4V
R901208742	DRE6-1X/50MG24N9K4M
R901252621	DRE6-1X/50MG24N9K4V
R900916195	DRE6-1X/50MG24NK4M
R901206527	DRE6-1X/50MG24NK4V
R900535381	DRE6-1X/50MG24NZ4M
R900553500	DRE6-1X/50MG24NZ4V
R900549737	DRE6-1X/50MG24Z4M
R901439283	DRE6-1X=210MG24K4M
811402055	DRE6X-1X/175MG24-8NZ4M
811402060	DRE6X-1X/175MG24-8NZ4M-6
811402062	DRE6X-1X/20MG24-8NZ4M
811402056	DRE6X-1X/245MG24-25NZ4M
811402057	DRE6X-1X/245MG24-25NZ4M-8
811402058	DRE6X-1X/310MG24-8NZ4M
811402054	DRE6X-1X/70MG24-8NZ4M-7
811402053	DRE6X-1X/75MG24-25NZ4M
811402059	DRE6X-1X/75MG24-8NZ4M
R901342340	DRE6X-1X/75MG24-8NZ4M-6
R901319104	DREE6-1X/100MG24K24A1M
R901307058	DREE6-1X/100MG24K24F1M
R901417081	DREE6-1X/100MG24K24F1V
R901457092	DREE6-1X/100MG24N9K24A1M
R901307063	DREE6-1X/210MG24K24A1M
R901332978	DREE6-1X/210MG24K24F1M
R901439771	DREE6-1X/210MG24K24F1V
R901432050	DREE6-1X/210MG24N9K24A1M
R901307057	DREE6-1X/50MG24K24A1M
R901426364	DREE6-1X/50MG24N9K24A1M
R901326897	DREE6-1X/50MG24N9K24F1M
R901384989	DREE6-1X/50MG24N9K24F1V
