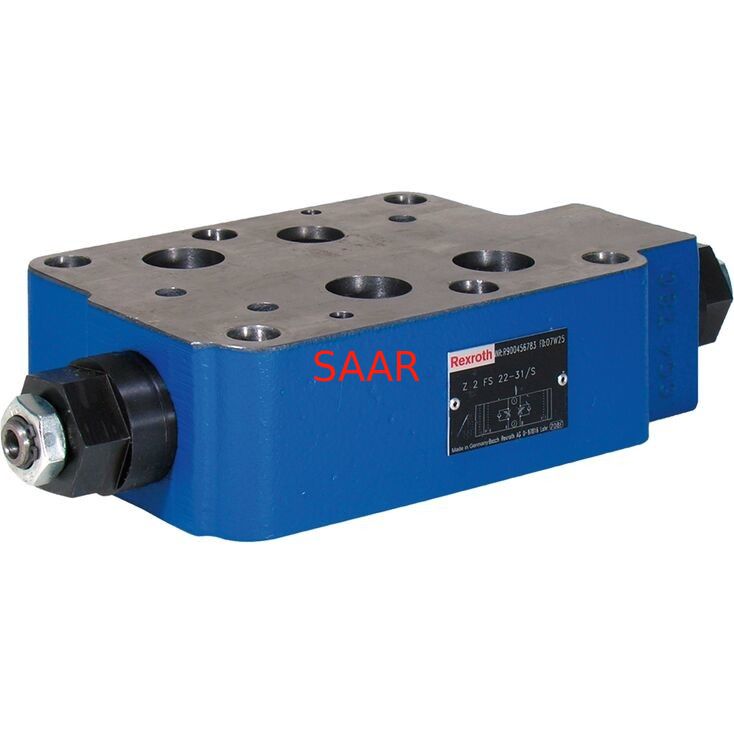

Rexroth R971L20012 Z2FS22-31/S Z2FS22-3X/S Throttle Check Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R971L20012 Z2FS22-31/S Z2FS22-3X/S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Model:

R971L20012

MNR:

Z2FS22-31/S Z2FS22-3X/S

Highlight:

Rexroth R971L20012 Throttle Check Valve

Z2FS22-31/S

350 Bar Throttle Check Valve

Rexroth Throttle Check Valve Z2FS22

Size 25
Component series 3X
Maximum operating pressure 350 bar
Maximum flow 360 l/min

Features
Sandwich plate valve
Porting pattern according to ISO 4401-08-08-0-05
For limiting the main or pilot flow of two consumer ports
Adjustment type: Spindle with hexagon socket
For supply or discharge throttling
Corrosion-protected design

Type Code:

01	02	03	04		05		06	07	08	09
Z2FS	22		8	–	3X	/				*

01	Throttle check valve, sandwich plate design	Z2FS
02	Size 25	22
03	Throttle check valve side A and B	–
	Throttle check valve side A	A
	Throttle check valve side B	B
Adjustment type
04	Spindle with internal hexagon	8
05	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
06	Supply throttling	S
06	Discharge throttling	S2
Corrosion resistance (outside)
07	None (valve housing primed)	no code
07	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Seal material
08	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
09	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Throttle Check Valve Z2FS22 Model List:

R900449753	Z2FS22-3X/
R900485273	Z2FS22-3X/S/5
R900398238	Z2FS22-3X/S2SO60
R900561540	Z2FS22-3X/S2SO72
R900485269	Z2FS22-3X/S2/5
R900474737	Z2FS22-3X/S2J3
R900449852	Z2FS22-3X/S2J3V
R901335945	Z2FS22-3X/S2V
R900488912	Z2FS22-3X/SJ3
R900507948	Z2FS22-3X/SVSO62
R900519405	Z2FS22-3X/SVSO68
R900472678	Z2FS22-3X/V
R900456783	Z2FS22-8-3X/S
R900443176	Z2FS22-8-3X/S2
R900414243	Z2FS22-8-3X/S2SO8
R900468786	Z2FS22-8-3X/S2V
R900474580	Z2FS22-8-3X/SV
R900072643	Z2FS22-8-3X=S2
R901287213	Z2FS22A8-3X/S2V
R901339001	Z2FS22A8-3X/SV
R900595835	Z2FS22B8-3X/S
R901272651	Z2FS22B8-3X/S2V
R901272652	Z2FS22B8-3X/SV
R971L20012	Z2FS22-3X/S
R971L20013	Z2FS22-3X/S2
R971L20042	Z2FS22-3X/SV
