Name: Rexroth R971L20010 Z2FS16-31/S Z2FS16-3X/S Throttle Check Valve
Brand: Saar HK Electronic Limited
SKU: R971L20010 Z2FS16-31/S Z2FS16-3X/S
Price: Negotiable USD
Availability: InStock

Home Products Rexroth Hydraulic Valves

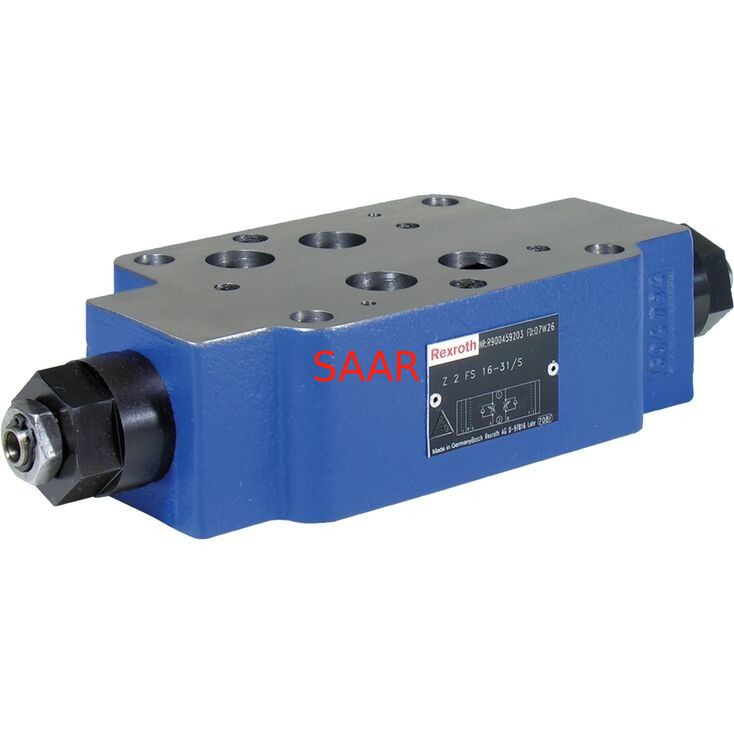

Rexroth R971L20010 Z2FS16-31/S Z2FS16-3X/S Throttle Check Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R971L20010 Z2FS16-31/S Z2FS16-3X/S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Model:

R971L20010

MNR:

Z2FS16-31/S Z2FS16-3X/S

Highlight:

Rexroth R971L20010 Throttle Check Valve

350 Bar Throttle Check Valve

Z2FS16-31/S

Rexroth Throttle Check Valve Z2FS16

Size 16
Component series 3X
Maximum operating pressure 350 bar
Maximum flow 250 l/min

Features
Sandwich plate valve
Porting pattern according to ISO 4401-07-07-0-05
Flow limitation of 2 actuator ports
Adjustment type: Spindle with hexagon socket
Meter-in or meter-out throttling

Type Code:

01	02	03	04	05	06		07		08	09	10	11
Z	2	FS	16		8	–	3X	/				*

01	Sandwich plate valve	Z
Number of functions
02	2 (throttling in channel A and/or B)	2
03	Throttle check valve	FS
04	Size 16	16
Functions in
05	Channel A	A
	Channel B	B
	Channel A and B	–
Adjustment type
06	Spindle with internal hexagon	8
07	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Supply throttling / discharge throttling
08	Supply throttling on side A ("…A8–3X/S")	S
	Supply throttling on side B ("…B8–3X/S")
	Supply throttling on side A and B ("…–8–3X/S")
	Discharge throttling on side A ("…A8–3X/S2")	S2
	Discharge throttling on side B ("…B8–3X/S2")
	Discharge throttling on side A and B ("…–8–3X/S2")
Corrosion resistance (outside)
09	None (valve housing primed) (standard)	no code
09	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Seal material
10	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
11	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Throttle Check Valve Z2FS16 Mode List:

R900449754	Z2FS16-3X/
R900406113	Z2FS16-3X/J
R900411029	Z2FS16-3X/SSO30
R900485270	Z2FS16-3X/S/5
R900388243	Z2FS16-3X/S1
R900061072	Z2FS16-3X/S2SO30
R900485266	Z2FS16-3X/S2/5
R900519092	Z2FS16-3X/S2VSO68
R900328147	Z2FS16-3X/SJSO3
R900406344	Z2FS16-3X/V
R900459203	Z2FS16-8-3X/S
R900457256	Z2FS16-8-3X/S2
R900073408	Z2FS16-8-3X/S2=LB
R900476035	Z2FS16-8-3X/S2J
R901413310	Z2FS16-8-3X/S2J3
R901413311	Z2FS16-8-3X/S2J3V
R900417999	Z2FS16-8-3X/S2JV
R900473688	Z2FS16-8-3X/S2V
R900419300	Z2FS16-8-3X/SJ
R901413313	Z2FS16-8-3X/SJ3
R901413315	Z2FS16-8-3X/SJ3V
R901293907	Z2FS16-8-3X/SJV
R900470529	Z2FS16-8-3X/SV
R900073409	Z2FS16-8-3X/SV=LB
R900426851	Z2FS16A8-3X/S
R900348227	Z2FS16A8-3X/S2
R900591255	Z2FS16A8-3X/S2V
R900591254	Z2FS16A8-3X/SV
R900498950	Z2FS16B8-3X/S
R900498949	Z2FS16B8-3X/S2
R901400150	Z2FS16B8-3X/S2V
R971L20010	Z2FS16-3X/S
R971L20011	Z2FS16-3X/S2
R971L20038	Z2FS16-3X/S2V
R971053346	Z2FS16-8-3X/SV
