26'' Filter Elements Pairs Ruggedly Constructed For GDX And GDS

26'' Filter Elements Pairs for GDX and GDS

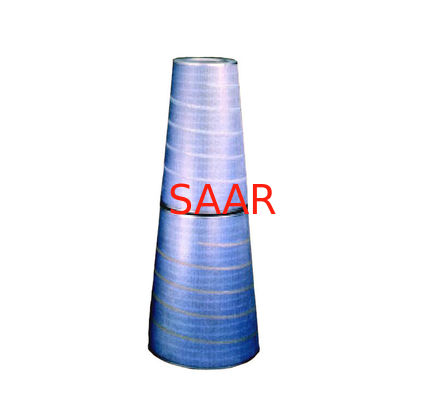

26" GDS-II Filter Pairs

In the GDS-II Air Inlet

Static Filtration Systems that we provide in Europe and Asia, two conical filters are paired and mounted horizontally to provide superior turbine protection, low pressure drop, and long service life.


Features

• High performance media to fit
specific operating conditions
• Ruggedly constructed for long life
• Can be individually boxed or bulk
packed on a pallet.....your choice.
The smaller of the GDS-II cone pair
is nested inside the larger for volume
efficiency in shipping.

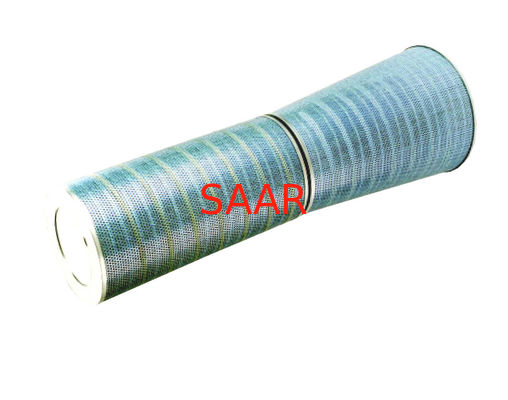

In the GDX Air Inlet
Self-Cleaning (pulsed) and GDS (static) Filtration Systems, one conical and one cylindrical filter are paired and mounted horizontally to provide superior turbine protection.
The conical + cylindrical pair is typically in systems supplies in the Americas and Asia.
Features
• Many high performance choices, including our exclusive high performance Spider-Web and new Spider-WebXP nanofiber media.
• Can be individually boxed or bulk packed on a pallet.....your choice.

Dimensions

Small Cone
Large end OD 17½"/446mm
Small end OD 12¾"/324mm
Length 28"/711mm
Large Cone
Large end OD 22¾"/571mm
Small end OD 17½"/446mm
Length 28"/711mm
